LAMINATED DOCK BUMPERS


LAMINATED DOCK  BUMPERS®  (LB-2240)
Laminated bumpers are the "Work-Horse" in the bumper field, having been made for many decades. Docks with no bumper protection or inadequate styles (such as wooden timbers), are in danger of causing damage to vehicle and property. OSHA requires that all docks have proper durable type bumpers.

Special overlapping angles can be provided to standard bumpers where required to minimize the gap between units. Always start with a standard model with the regular flush-angles. Continue with the "OL" (overlap) type. Different size bumpers may be used in the "OL" layout. Each bumper designated "OL" will have one angle offset and one regular offset (see sketch below).

SPECIFICATIONS (C.I.S. Div. 11 Loading Dock Equipment)
Laminated Bumpers are made of resilient recycled rubber-cord material from old truck and airplane tires. They are cut in uniform pads and punched to receive 3/4" supporting rods. Ends of these bumpers are enclosed with metal angles under 1,500 pounds of pressure and welded to the supporting rods. The anchor leg  extends 2-1/2" beyond the rubber with either 2 or 3 anchor bolt holes 13/16". The other leg of the angle is 1-1/2" shorter than the rubber pads so that the metal will not be touched on impact.

Assembly, Installation
We recommend all bumpers be installed 1" to 2" below dock level. Welding should be done where possible and anchor holes should be plug welded. Use 3/4" or 5/8" lag bolts with a minimum length of 3" and corresponding shields if required. Use 3/4" "J" bolts with a minimum length of 8" and 1-1/4" projection.

One Year Guarantee
AFCO Laminated Dock Bumper guarantee offers to replace, on a service pro-rate basis within a one year period, bumpers which have lost their effectiveness because of wear. Damage resulting from faulty installation or accident is not covered, nor is damage to the truck dock or personnel. Installation and freight are not included.

Overlapped Installation

Overlapped Installation

Extra Length Bumper Installation

Anchoring Devices

Extra Length Bumpers

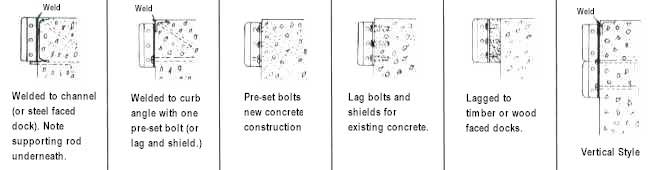

Anchorage & Installation Suggestions

Anchorage & Installation Suggestions

Standard Styles

B406 Horizontal Bumpers

B410 Horizontal Bumpers

B412 Horizontal Bumpers

VB420 Vertical Bumpers

VB424 Vertical Bumpers

VB436 Vertical Bumpers

Style Thickness Out from Dock Overall Size
A x B
Rubber Surface
A x C
Bolt Holes
D
Angle Holes
F
No. of Bolts required Weight
(Lbs.)
  B406-24
  B406-36
4.5" 6" x 26"
6" x 38"
6" x 21"
6" x 33"
24"
36"
3" 4 29
45
  B410-14
  B410-18
  B410-24
  B410-36
4.5" 10" x 16"
10" x 20"
10" x 26"
10" x 38"
10" x 11"
10" x 15"
10" x 21"
10" x 33"
14"
18"
24"
36"
6" 4 29
36
46
72
  B412-14
  B412-18
  B412-24
  B412-36
4.5" 12" x 16"
12" x 20"
12" x 26"
12" x 38"
12" x 11"
12" x 15"
12" x 21"
12" X 33"
14"
18"
24"
36"
4" 6 35
44
58
84
  VB420-11
  VB424-11
  VB436-11
4.5" 20" x 13"
24" x 13"
36" x 13"
20" x 8"
24" x 8"
36" x 8"
11"   7"
  9"
10"
6 46
56
85
  B610-14
  B610-18
  B610-24
  B610-36
6" 10" x 16"
10" x 20"
10" x 26"
10" x 38"
10" x 10"
10" x 14"
10" x 20"
10" x 32"
14"
18"
24"
36"
6" 4 33
40
55
82
  B612-14
  B612-18
  B612-24
  B612-36
6" 12" x 16"
12" x 20"
12" x 26"
12" x 38"
12" x 10"
12" x 14"
12" x 20"
12" x 32"
14"
18"
24"
36"
4" 6   39
  50
  72
105
  VB620-11
  VB624-11
  VB636-11
6" 20" x 13"
24" x 13"
36" x 13"
20" x 7"
24" x 7"
36" x 7"
11"   7"
  9"
10"
6   53
  64
100

Extra Thick

Style Thickness Out from Dock Overall Size
A x B
Rubber Surface
A x C
Anchor Bolt Holes
D
No. of Bolts required Angle Holes
F
Weight
(Lbs.)
  B910-14
  B910-24
  B910-36
  VB920-11
9" 10" x 16"
10" x 26"
10" x 38"
20" x   8"
10" x 10-1/4"
10" x 20-1/4"
10" x 32-1/4"
20" x   7-1/4"
14"
24"
36"
11"
4
4
4
6
6"
6"
6"
7"
  63
  98
152
103
  B1010-14
  B1010-24
  B1010-36
  VB1020-11
10.5" 10" x 16"
10" x 26"
10" x 38"
20" x   8"
10" x   9-1/4"
10" x 19-1/4"
10" x 31-1/4"
20" x   6-1/4"
14"
24"
36"
11"
4
4
4
6
6"
6"
6"
7"
  71
109
167
109
  B1210-14
  B1210-24
  B1210-36
  VB1220-11
12" 10" x 16"
10" x 26"
10" x 38"
20" x   8"
10" x   9-1/4"
10" x 19-1/4"
10" x 31-1/4"
20" x   6-1/4"
14"
24"
36"
11"
4
4
4
6
6"
6"
6"
7"
  76
120
195
134

Extra Length (Center Support Anchor Included)

Style Size  {A x B} Weight  (Lbs.) Anchoring Devices
  XL410-45
  XL410-55
  XL410-65
  XL410-75
  XL410-85
  XL410-95
  XL410-105
4.5" x 10" x   4'-5"
4.5" x 10" x   5'-5"
4.5" x 10" x   6'-5"
4.5" x 10" x   7'-5"
4.5" x 10" x   8'-5"
4.5" x 10" x   9'-5"
4.5" x 10" x 10'-5"
103
126
149
172
195
220
240
One
One
One
Two
Two
Three
Three
  XL412-45
  XL412-55
  XL412-65
  XL412-75
  XL412-85
  XL412-95
  XL412-105
4.5" x 12" x    4'-5"
4.5" x 12" x   5'-5"
4.5" x 12" x   6'-5"
4.5" x 12" x   7'-5"
4.5" x 12" x   8'-5"
4.5" x 12" x   9'-5"
4.5" x 12" x 10'-5"
122
150
177
204
232
260
286
One
One
One
Two
Two
Three
Three
Note: 6" thick also available.
